Artistic Twisted Aluminum Panel
Product Overview:
| Material | Aluminum | Aluminum Alloy | 1100 / 3003 / 5005 |
| Thickness | 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm,
8.0mm and so on | Surface Finish | PVDF Coated / Power Coated / Ceramic Coated / Wood Imitation |
| Width | 50-800mm | Length | within 6000mm |
| Coating Brand | PPG / Akzo Nobel | Warranty | 10-20 years |
| Size | Customized | Color | Customized |
| Packing | Wooden Box | MOQ | 500㎡ |
Product Information:
WHOLETOPS brand Artistic Twisted Aluminum Panel is made of high quality extrusion aluminum alloy. It has excellent
performance and durability through treatment such as PVDF Coated /
Power Coated / Ceramic Coated / Wood Imitation and so on. Artistic Twisted Aluminum Panel is unique and widely used in the curtain wall decoration industry.
It is suitable for building exterior wall decoration and interior
wall decoration. It is both practical and beautiful because the
style is simple and elegant, and the installation and maintenance
are convenient.
Artistic Twisted Aluminum Panel usually appears in complex
installation systems and it is superior difficulty special-shaped
aluminum panel. Ordinary arc-shaped aluminum panel is usually only
bent in one plane, and its functional parts only belong to the
plane structure. The Artistic Twisted Aluminum Panel is non-typical
spatial structure due to its own space bending and twisting.
Compared with ordinary linear or arc-shaped aluminum panel, its
production is much more difficult.
The design style and shape of this product are changeable. Each
panel is formed by precise machining, which can ensure that the
quality and surface of each panel are not deformed. And it can
achieve beautiful decorative effects according to the rich fantasy
of designers.
Fabrication Procedure:
- Fabrication Procedure:
- prepare accurate 2D Drawing & 3D model for CNC cutting according to
design requirement;
- prepare precise Fabricating Template and Checking Module according
to 3D model;
- Mechanical forming with Fabricating Template;
- spray;
- check with Checking Module.
Regular parameters:
| Twisted Angle(°) | Panel Thickness(mm) | Panel Width(mm) | Panel Length(mm) |
| 90° | not less than 3mm | 800-1000 | 4000 |
| 180° | not less than 3mm | 100-500 | 4000 |
| 360° | not less than 3mm | 50-150 | 4000 |
*Scopes of Application:
Artistic Twisted Aluminum Panel is widely applied for high-rise building curtain wall decoration
such as airport, station, subway station, hospital, conference
hall, opera house, stadium, reception lobby.
* Product advantages:
- The technology is complex, showing the beauty of special shape;
- Corrosion-resistant, UV-resistant, and color fast for a long time;
- Color and thickness can be customized, meet actual construction
needs;
- Easy and flexible installation and maintenance, reducing the costs
of installation and maintenance;
- The aluminum alloy material can be completely recycled and reused,
which is green and environmentally friendly;
- Quality assurance, durable.

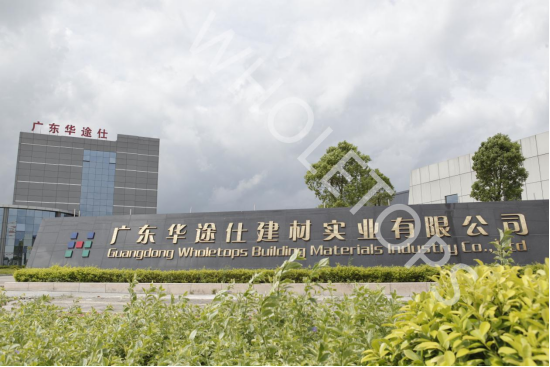

Our Company
